CA series power amplifier will be the voice of the high-power machine performance to a whole new level. No compromise, materials and production and application, such as high circuit current feed-forward class H, step protection and so on many mickey electronic unique design. Strong power and output current to the performance of the advanced speaker to the next level.
Using selected components, and had enough allowance
Mixer 3 tall circuit design (high efficiency, high speed, high current output)
Applied the current feedforward, isometric hysteresis level 3 H class design technology.
Pieces of built-in high-performance low pass filter and continuous adjustable frequency, perfect functions and reliable protection.
Mixer circuit combined with extended efficient heat dissipation aluminum and large flow fan make CA series amplifiers can easily in the face of all kinds of bad environment.

CA2 performance parameters:
The main input voltage 220 v AC /;
8 Ω output power 275 w * 2;
4 Ω output power 400 w * 2;
Input impedance Ω 20 k;
The damping coefficient of the material 223
30 KHZ frequency response 20 hz - 20 KHZ, plus or minus dB
Total harmonic distortion of < 0.05%;
SNR > 98 db;
Protection function: over current, short circuit, over temperature protection and so on
12 kg weight;
Size 450 * 483 * 90 mm

CA4 performance parameters:
The main input voltage 220 v AC /;
8 Ω output power 350 w * 2;
4 Ω output power 500 w * 2;
Input impedance Ω 20 k;
The damping coefficient of the material 223
30 KHZ frequency response 20 hz - 20 KHZ, plus or minus dB
Total harmonic distortion of < 0.05%;
SNR > 98 db;
Protection function: over current, short circuit, over temperature protection and so on
15 kg weight;
Size 450 * 483 * 90 mm

CA6 performance parameters:
The main input voltage 220 v AC /;
8 Ω output power 500 w * 2;
4 Ω output power 650 w * 2;
Input impedance Ω 20 k;
The damping coefficient of the material 223
30 KHZ frequency response 20 hz - 20 KHZ, plus or minus dB
Total harmonic distortion of < 0.05%;
SNR > 98 db;
Protection function: over current, short circuit, over temperature protection and so on
18 kg weight;
Size 450 * 483 * 90 mm

CA9 performance parameters:
The main input voltage 220 v AC /;
8 Ω output power 600 w * 2;
4 Ω output power 900 w * 2;
Input impedance Ω 20 k;
The damping coefficient of the material 223
30 KHZ frequency response 20 hz - 20 KHZ, plus or minus dB
Total harmonic distortion of < 0.05%;
SNR > 98 db;
Protection function: over current, short circuit, over temperature protection and so on
Weight 20 kg;
Size 450 * 483 * 90 mm

CA12 performance parameters:
The main input voltage 220 v AC /;
8 Ω output power 800 w * 2;
4 Ω output power 1200 w * 2;
Input impedance Ω 20 k;
The damping coefficient of the material 258
30 KHZ frequency response 20 hz - 20 KHZ, plus or minus dB
Total harmonic distortion of < 0.05%;
SNR > 105 db;
Protection function: boot delay start signal, over current, over voltage, short circuit, over temperature protection and so on
33 kg weight;
Size 460 * 483 * 132 mm

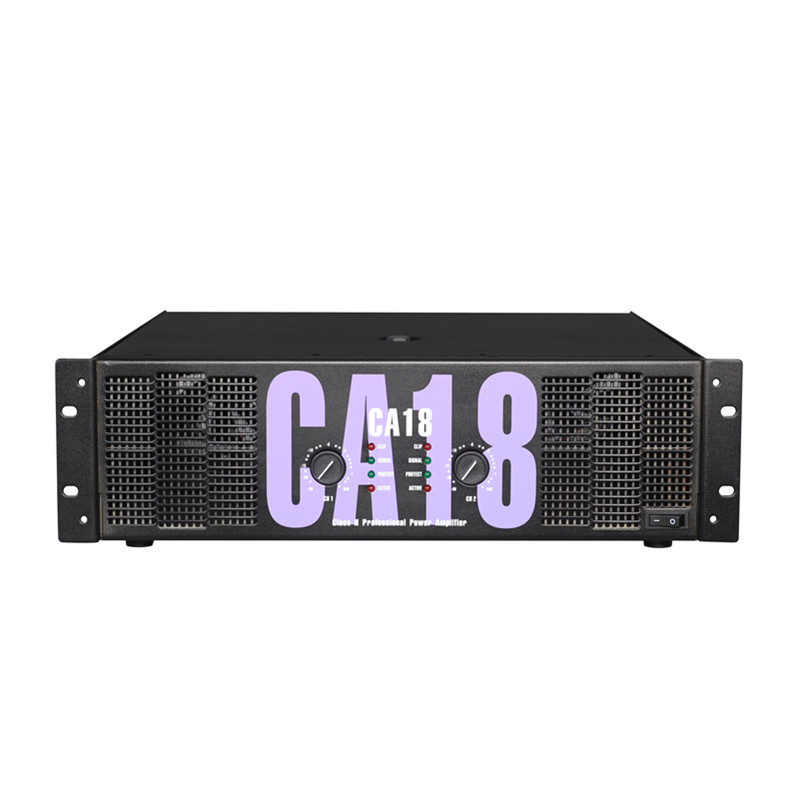

CA18 performance parameters:
The main input voltage 220 v AC /;
8 Ω output power 1000 w * 2;
4 Ω output power 1500 w * 2;
Input impedance Ω 20 k;
The damping coefficient of the material 258
30 KHZ frequency response 20 hz - 20 KHZ, plus or minus dB
Total harmonic distortion of < 0.05%;
SNR > 105 db;
Protection function: boot delay start signal, over current, over voltage, short circuit, over temperature protection and so on
36 kg weight;
Size 460 * 483 * 132 mm

CA20 performance parameters:
The main input voltage 220 v AC /;
8 Ω output power 1200 w * 2;
4 Ω output power 1800 w * 2;
Input impedance Ω 20 k;
The damping coefficient of the material 258
30 KHZ frequency response 20 hz - 20 KHZ, plus or minus dB
Total harmonic distortion of < 0.05%;
SNR > 105 db;
Protection function: boot delay start signal, over current, over voltage, short circuit, over temperature protection and so on
38 kg weight;
Size 460 * 483 * 132 mm

CA30 performance parameters:
The main input voltage 220 v AC /;
8 Ω output power 1500 w * 2;
4 Ω output power 2250 w * 2;
Input impedance Ω 20 k;
The damping coefficient of the material 258
30 KHZ frequency response 20 hz - 20 KHZ, plus or minus dB
Total harmonic distortion of < 0.05%;
SNR > 105 db;
Protection function: boot delay start signal, over current, over voltage, short circuit, over temperature protection and so on
Weight 45 kg;
Size 460 * 483 * 132 mm
